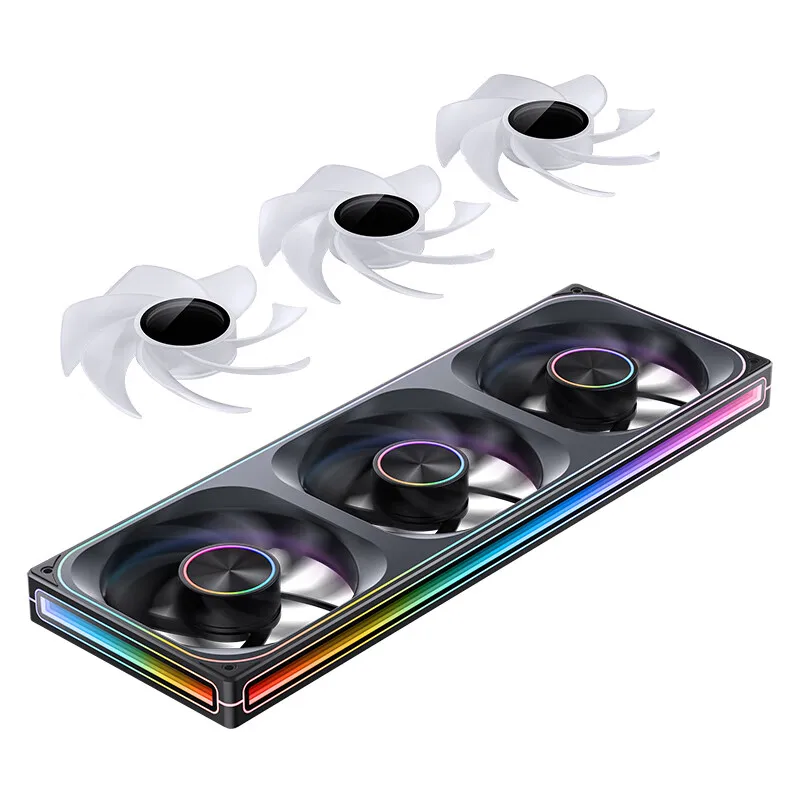

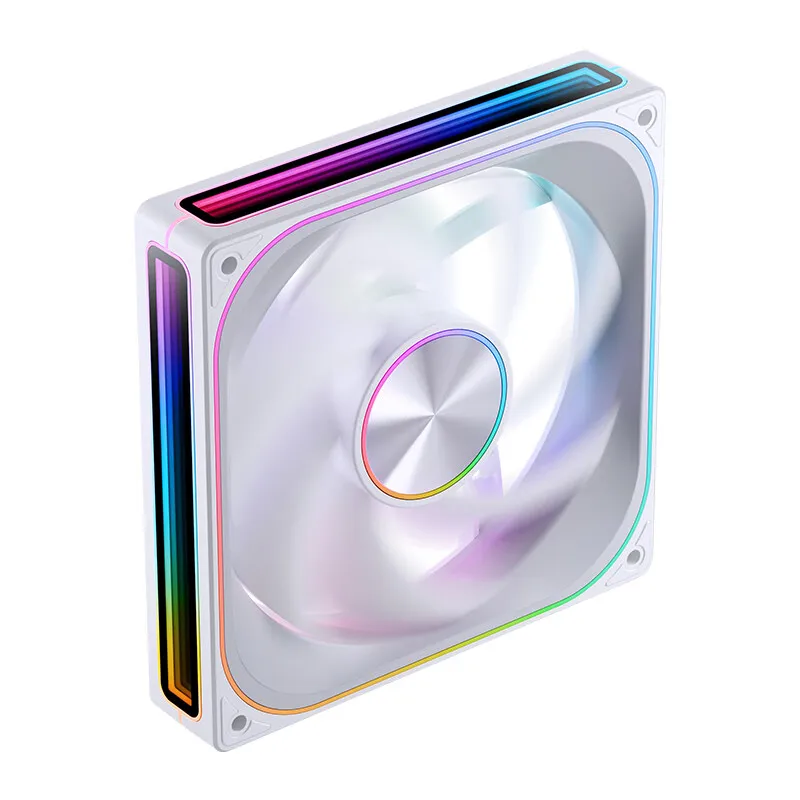

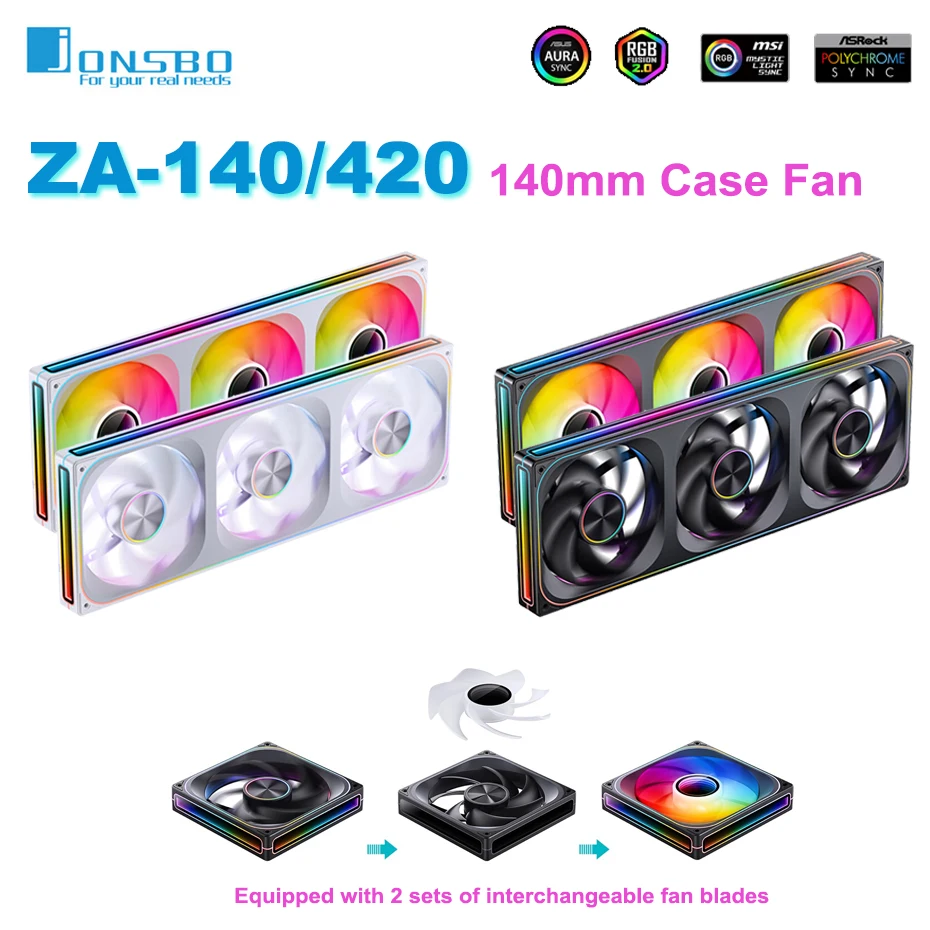

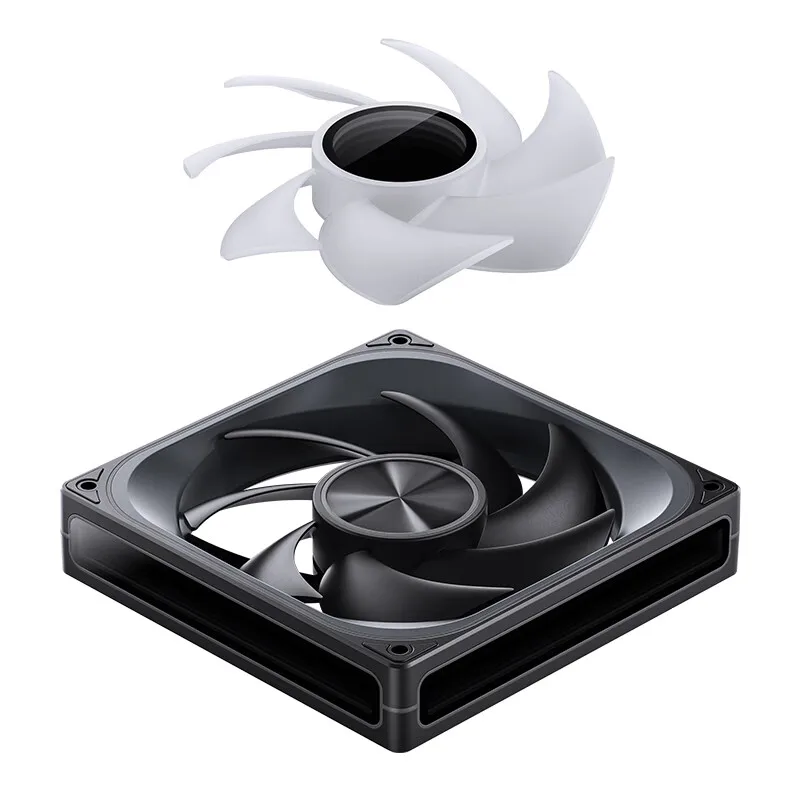

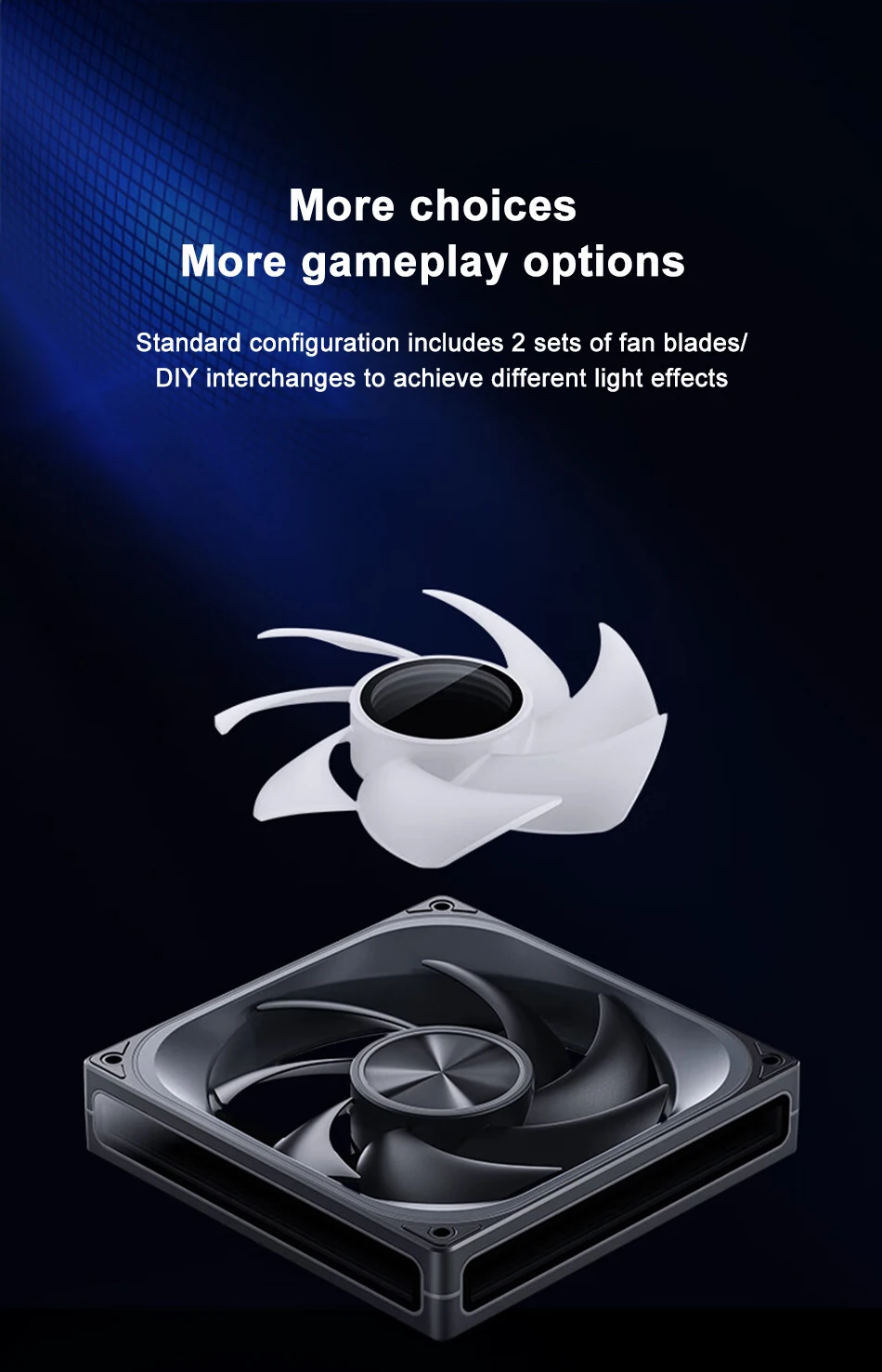

JONSBO ZA-140/420 Case Cooling Fan 140mm ARGB 3 Connected Bodies PWM Quiet Fan Replaceable Fan Blades
Description
SPECIFICATIONS
Air Volume: 68
Bearing: Fluid Bearing
Blade Quantity: 7
Brand Name: Jonsbo
Certification: CE,RoHS
Choice: yes
Fan Life: 50000 hrs
Fan Size: 140 MM
Fan Speed: 700 – 1800
High-concerned chemical: None
Lines: 4 LINES
Model Number: ZA-140/420
Noise: 28dBA
Origin: Mainland China
Package: Yes
Power (W): 4.4

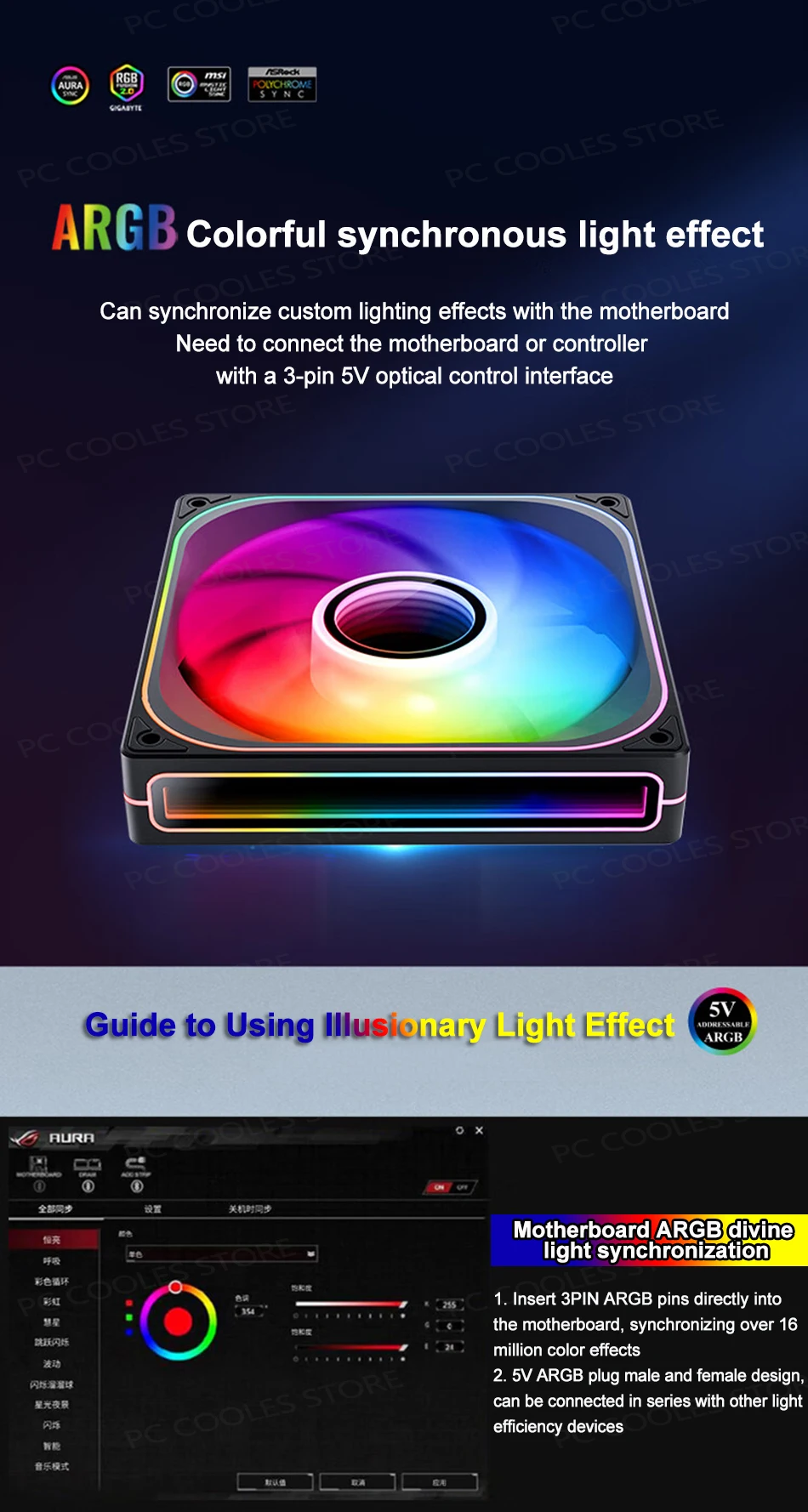

Power Interface: 5v-3pin ARGB
Series: ZA-140/420
Used For: Case,Radiator
Voltage: 12V
semi_Choice: yes

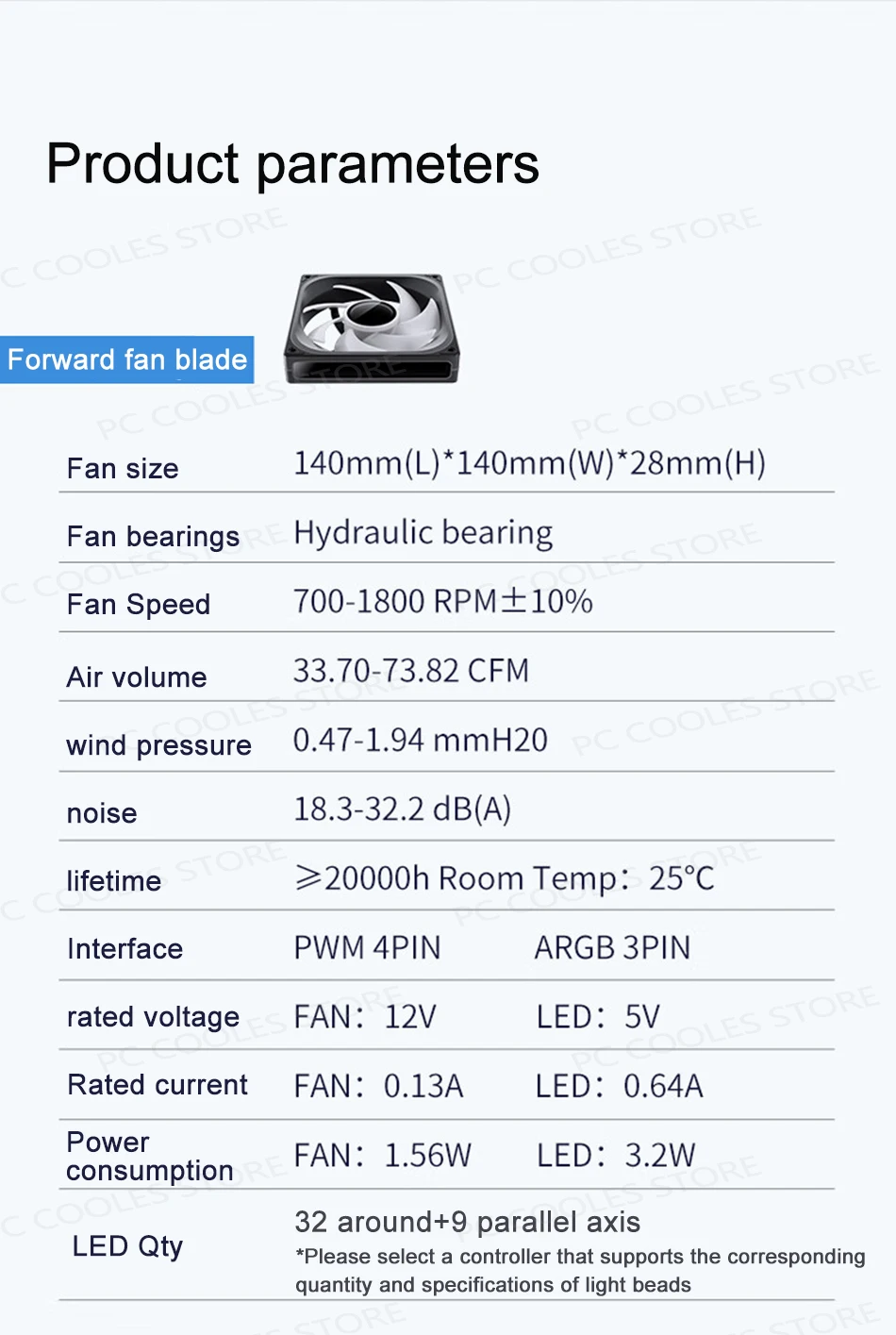

Product parameters

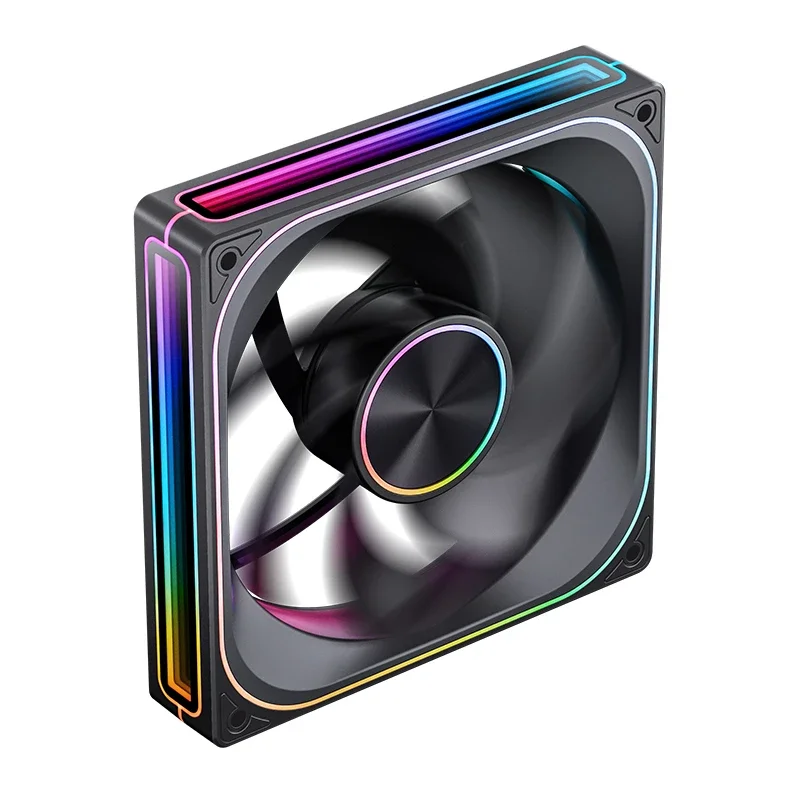

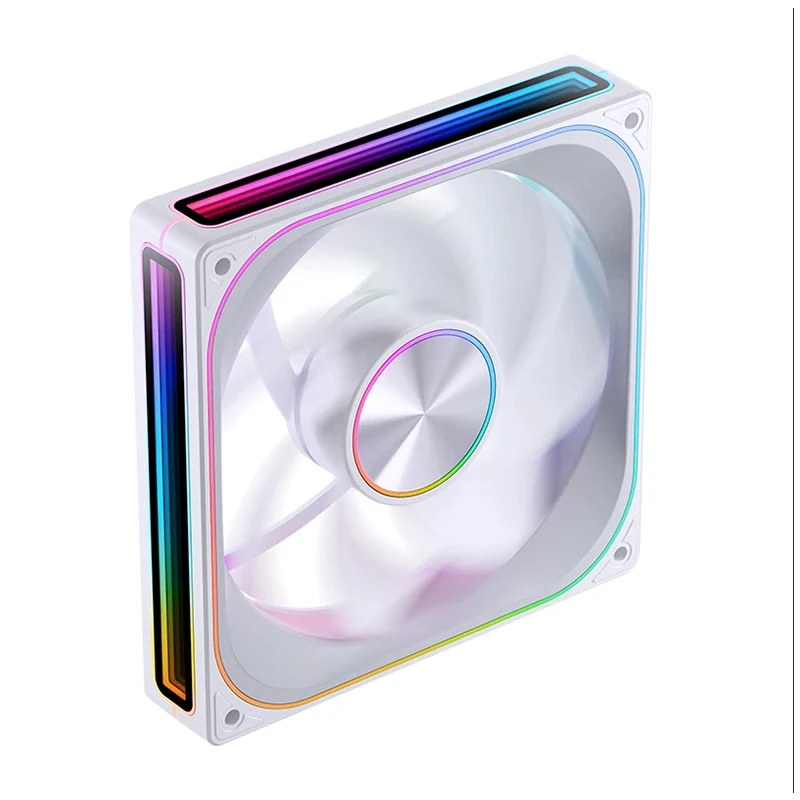

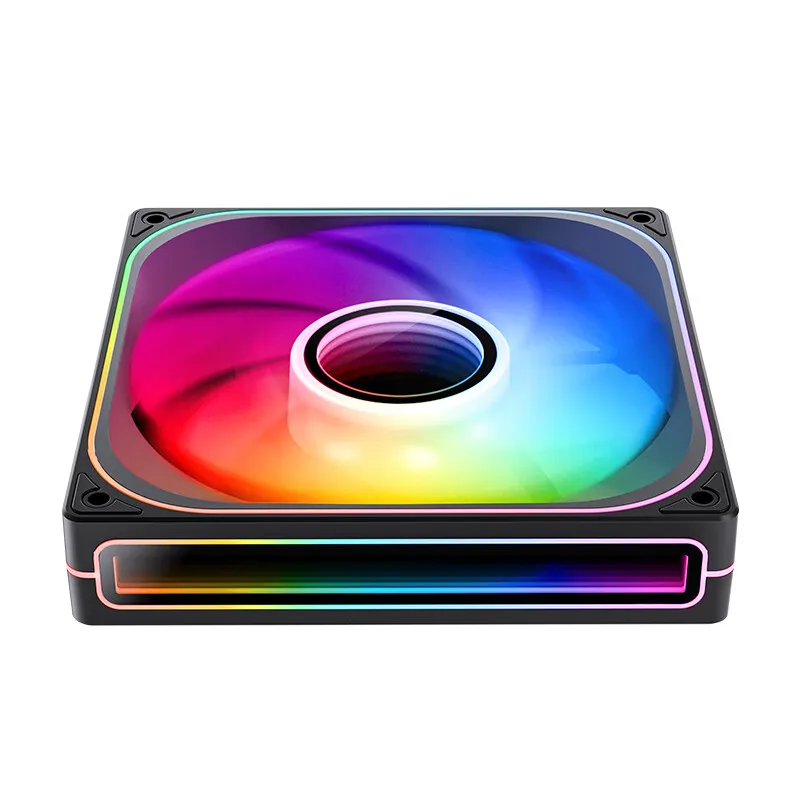

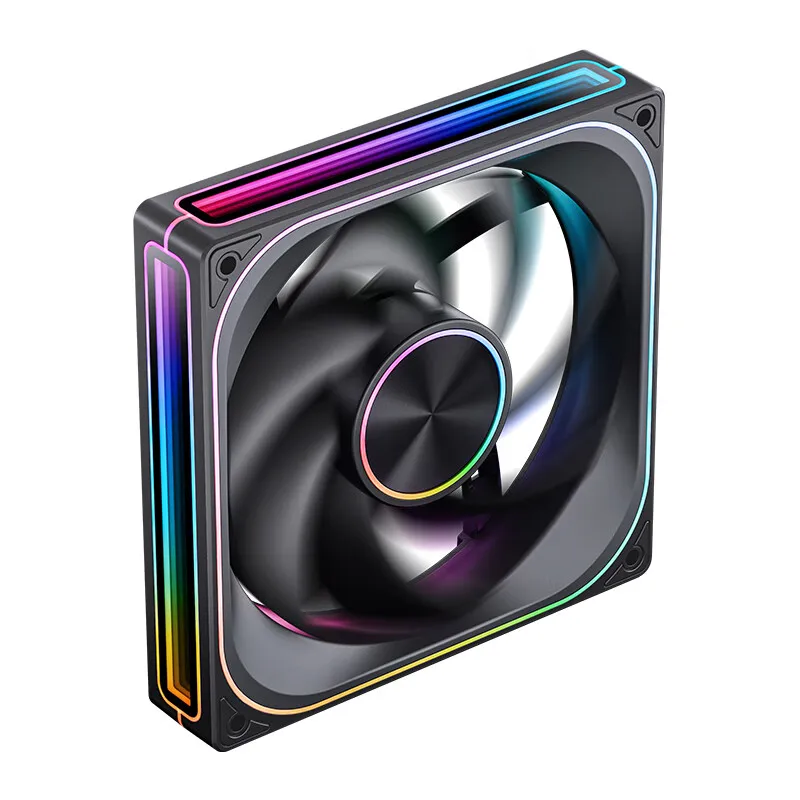

ZA-140
Fan size: 140mm (L) * 140mm (W) * 28mm (H)

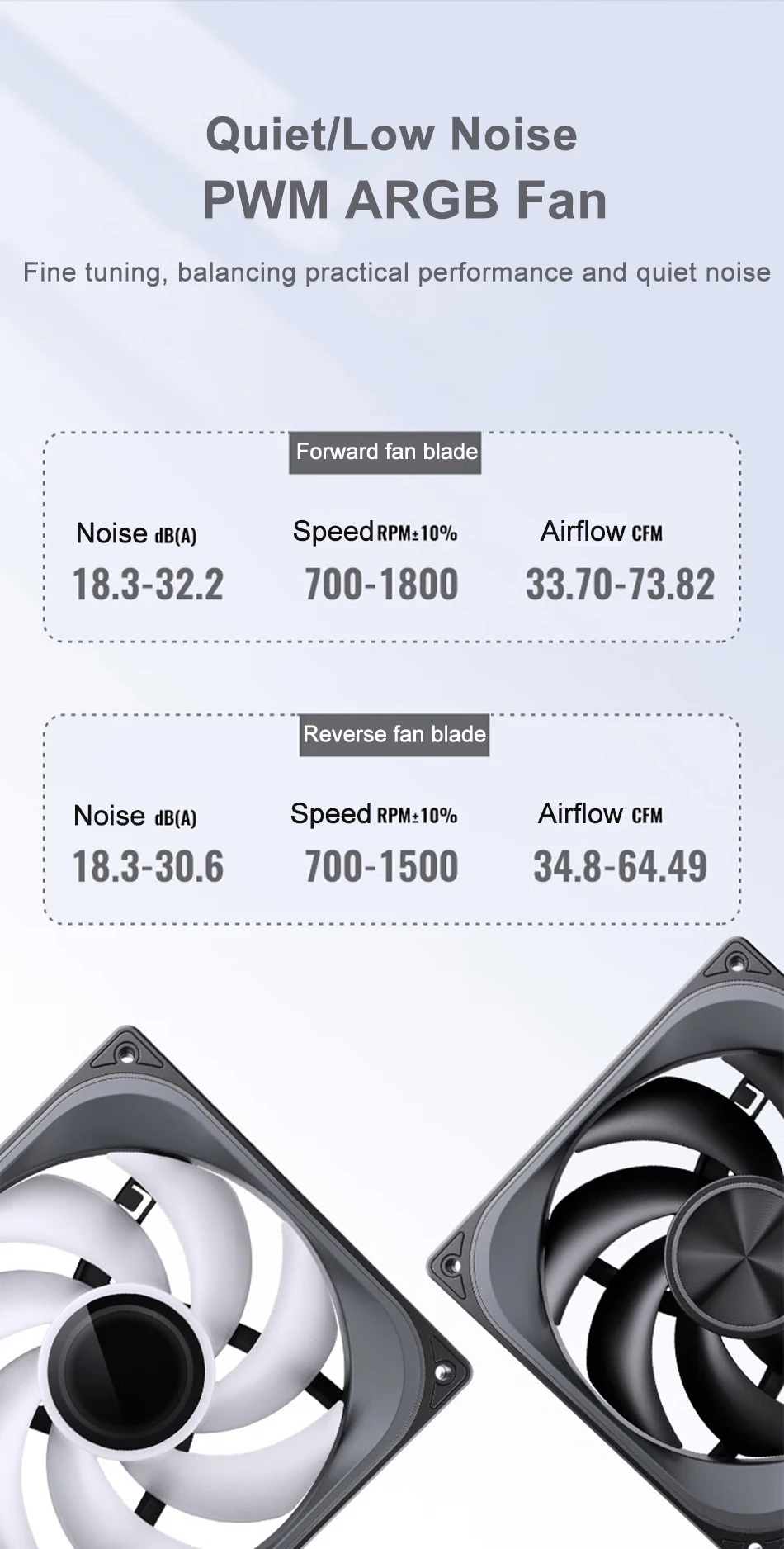

Speed: 700-1800rpm (± 10%)
Airflow volume: 33.70-73.82 CFM
Wind pressure: 0.47-1.94 mmH2O
Noise level: 18.3-32.2 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.13A LED 0.64A
Power: FAN 1.56W LED 3.2W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis
*Please select a controller that supports the corresponding quantity and specifications of light beads

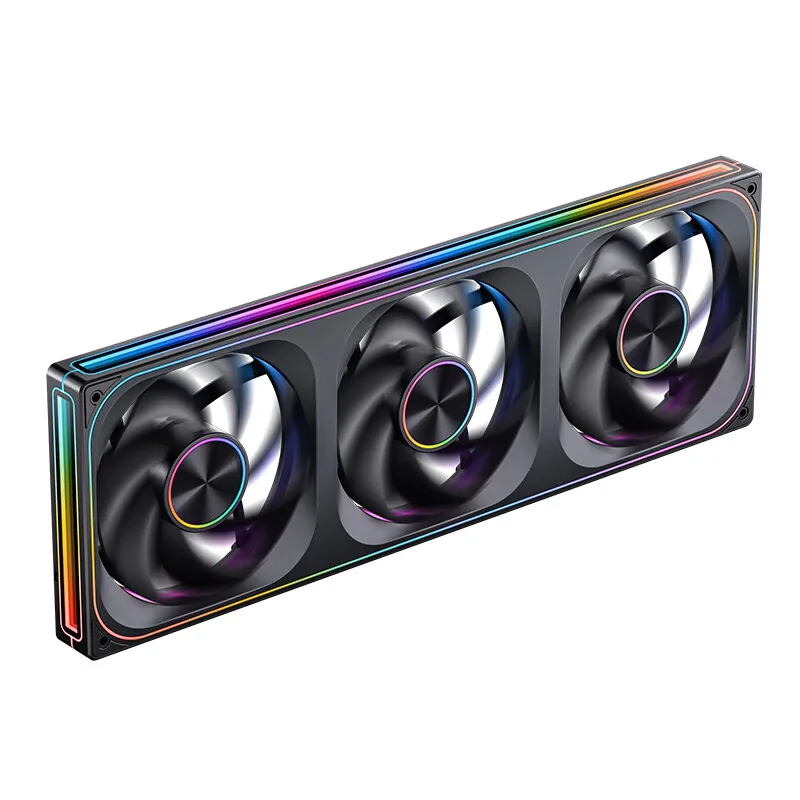

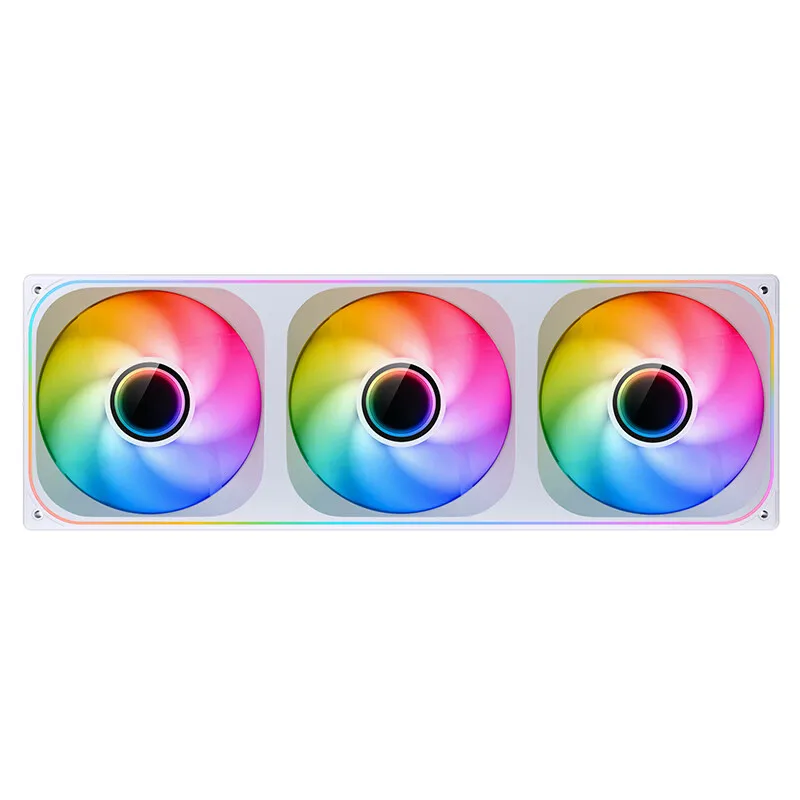

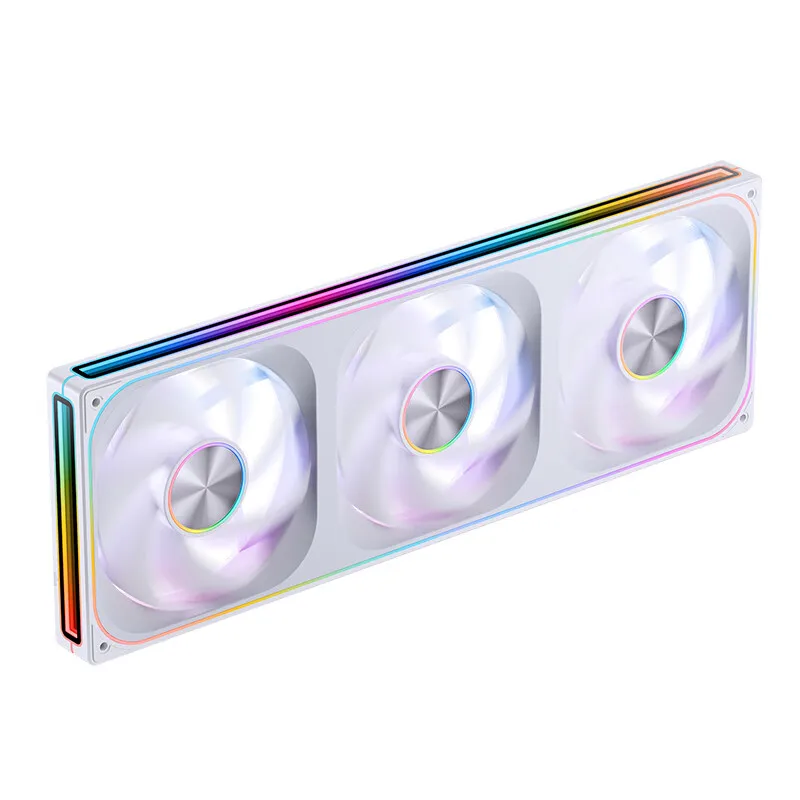

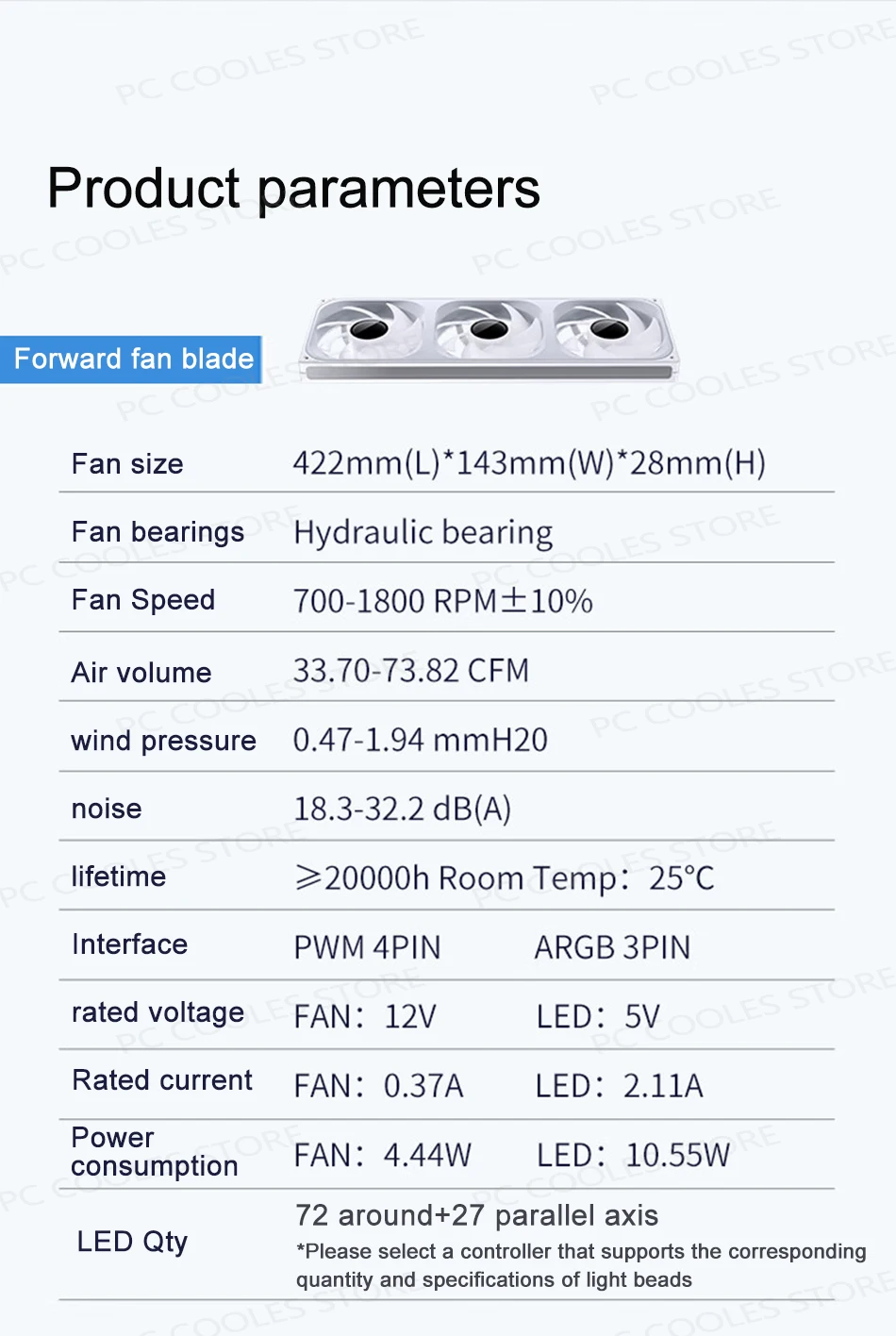

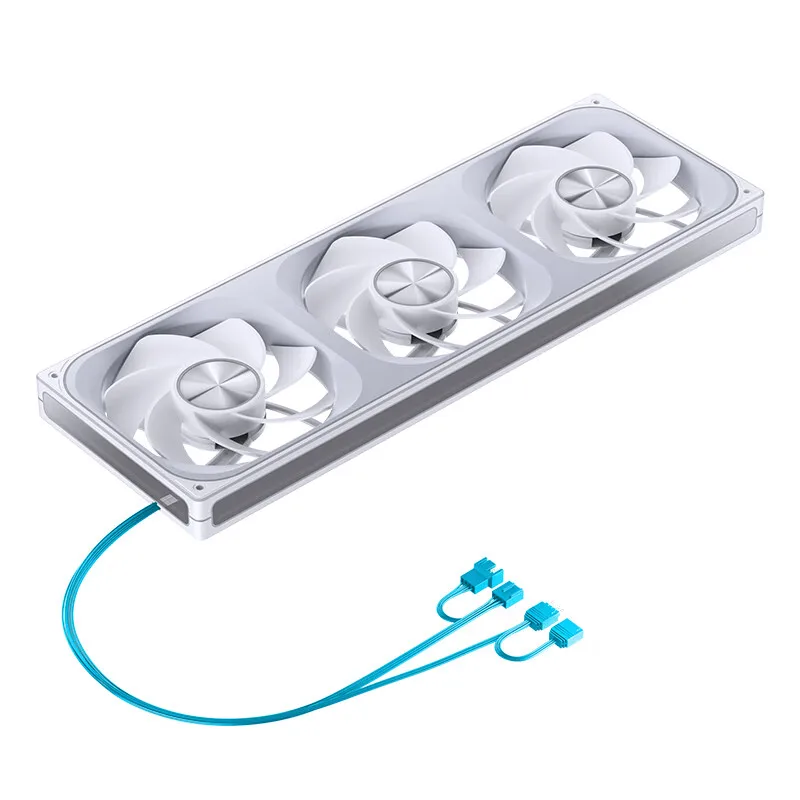

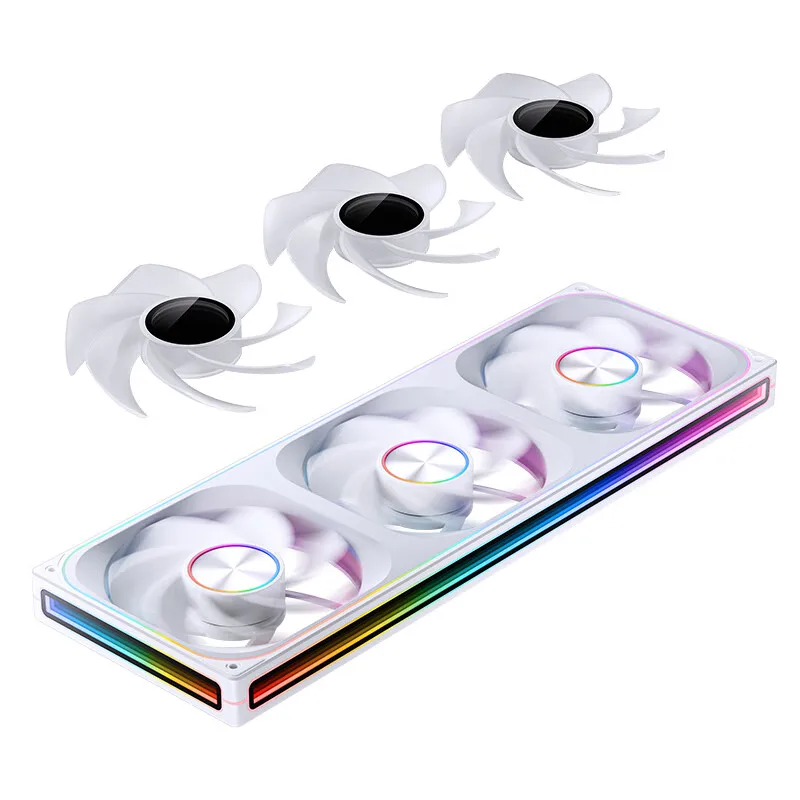

ZA-420
Fan size: 422mm (L) * 143mm (W) * 28mm (H)
Speed: 700-1800rpm (± 10%)
Airflow volume: 33.70-73.82 CFM
Wind pressure: 0.47-1.94 mmH2O
Noise level: 18.3-32.2 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.37A LED 2.11A
Power: FAN 4.44W LED 10.55W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 72 around+27 parallel axis
*Please select a controller that supports the corresponding quantity and specifications of light beads
Additional information

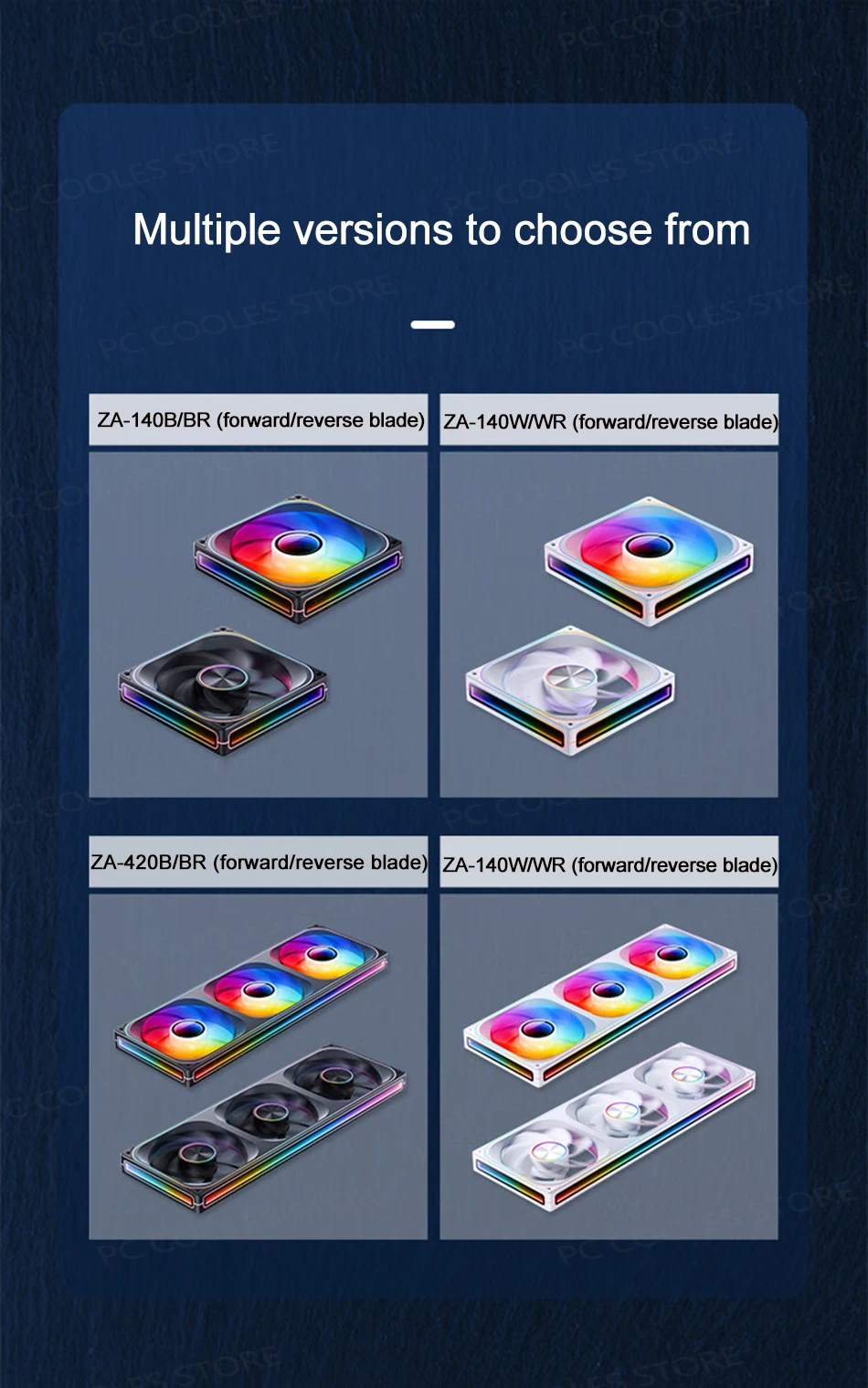

| Color | ZA-140W, ZA-140BR, ZA-420B, ZA-140WR, ZA-420W, ZA-420BR, ZA-420WR, ZA-140B |
|---|---|
| Blade Color | Other |
| RGB Support | A-RGB |
