SPECIFICATIONS

Application: Industrial computer

Brand Name: BEBEPC

COM Ports: 6*RS232 ( 2*RS485 optional )

Certification: CE,FCC,RoHS

Cooling system: Fanless

Dimension: 235*137*51mm

Display port: 6*COM , 1*HDMI

Graphics Card Type: Integrated Card

Hard Drive Capacity: 120GB

High-concerned chemical: None

Inter Port: 2*LAN 6*COM USB, HDMI, VGA

Memory Capacity: 8 GB

Model Number: X26A 6COM 2LAN

Origin: Mainland China

Power Adapter: DC12V-3/5A

Processor Brand: Intel

Processor Main Frequency: Depend on CPU

Processor Model: Celeron J1900 2955U / Core i5-4200U/ i7-5500U 4500U/i5-4200U

Processor-Celeron: J1900/ 2955U

Processor-Core: i5-4200U/ i7-5500U 4500U

Support OS: Windows 7/8/10, Linux Ubuntu etc.

Type: Mini Desktop,Mini PC

Use: Multimedia

Purchase Note: (Please read the following information carefully before purchase!)

Supported OS	Windows 10 32/64bits Windows 8.1 32/64bits Windows 7 64bits Linux, Ubuntu
CPU	Intel Celeron J1900 processor, 2M Cache, 2.0GHz, up to 2.40GHz; Intel Core i5-5200U processor, 3M Cache, 2.20GHz, up to 2.70GHz; Intel Celeron 2955U processor, 2M Cache, 1.40GHz; Intel Core i5-4200U processor, 3M Cache, 1.60GHz, up to 2.60GHz; Intel Core i7-5500U processor, 4M Cache, 2.40GHz, up to 3.0GHz; Intel Celeron J6412 processor, 4M Cache, 2.0GHz, up to 2.60GHz; Intel Core i5-7200U processor, 3M Cache, 2.50GHz, up to 3.10GHz; Intel Core i5-6300U processor, 3M Cache, 2.40GHz, up to 3.00GHz;
Graphics	Integrated Intel HD Graphics ( Depends on CPU )
Memory Types	J1900/2955U :1x SODIMM DDR3L, 1333/1600MHz, max support 1x 8GB J6412/i5-7200U/i5-6300U: 1x SOMIMM DDR4L memory slot,max support 32GB others CPUs :2x SODIMM DDR3L slots, 1333/1600MHz, max support 2x 8GB
Hard Drive	Support 1x mSATA SSD + 1x SATA 2.5 inch HDD/SSD,(J6412support one M.2 NVME)
Wireless	1x mini PCIE slot support WiFi/Bluetooth/3G/4G LTE modules 1x SIM slot on-board
LAN	J1900:Intel i211AT Gigabit Ethernet other CPUs:intel i225V 2.5G Ethernet
Audio	Realtek ALC662/892 HD Audio

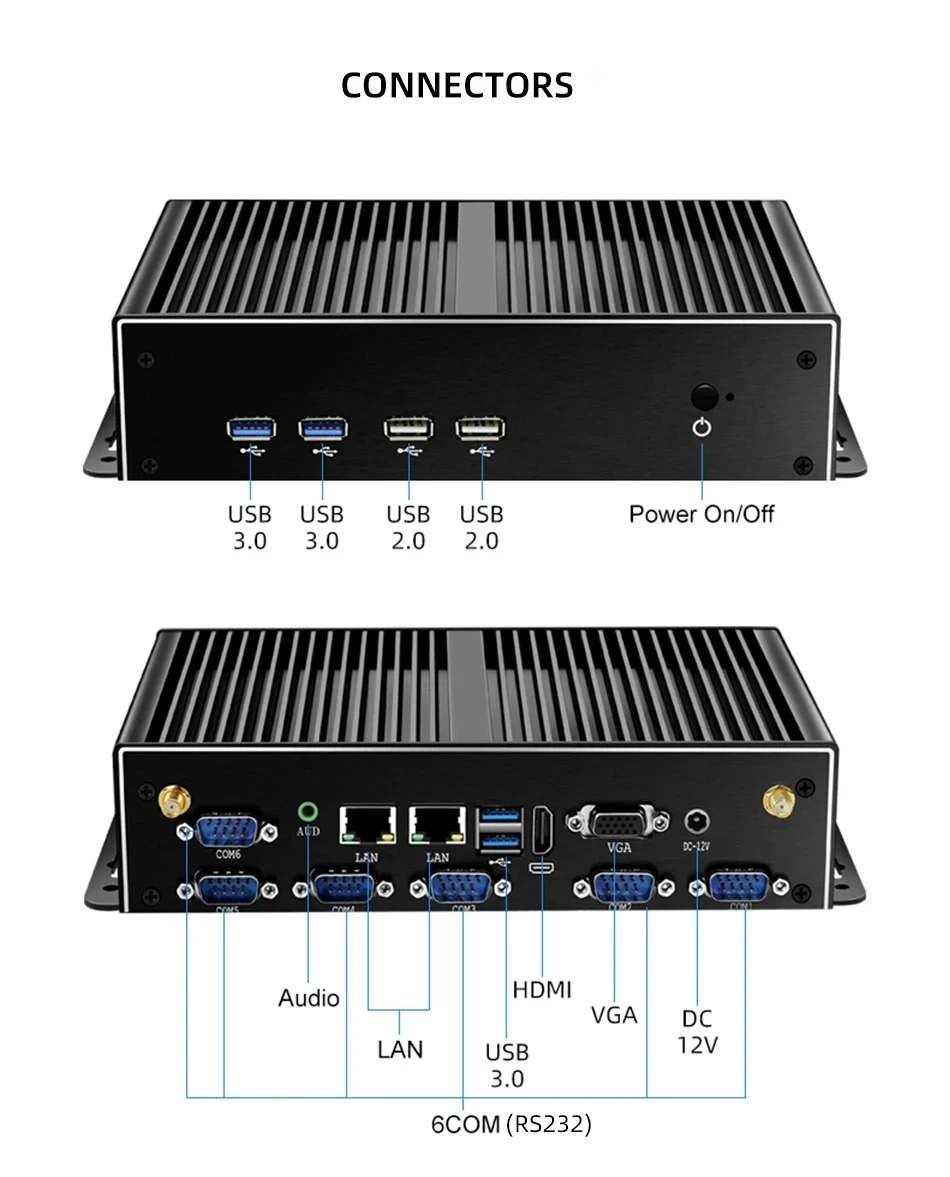

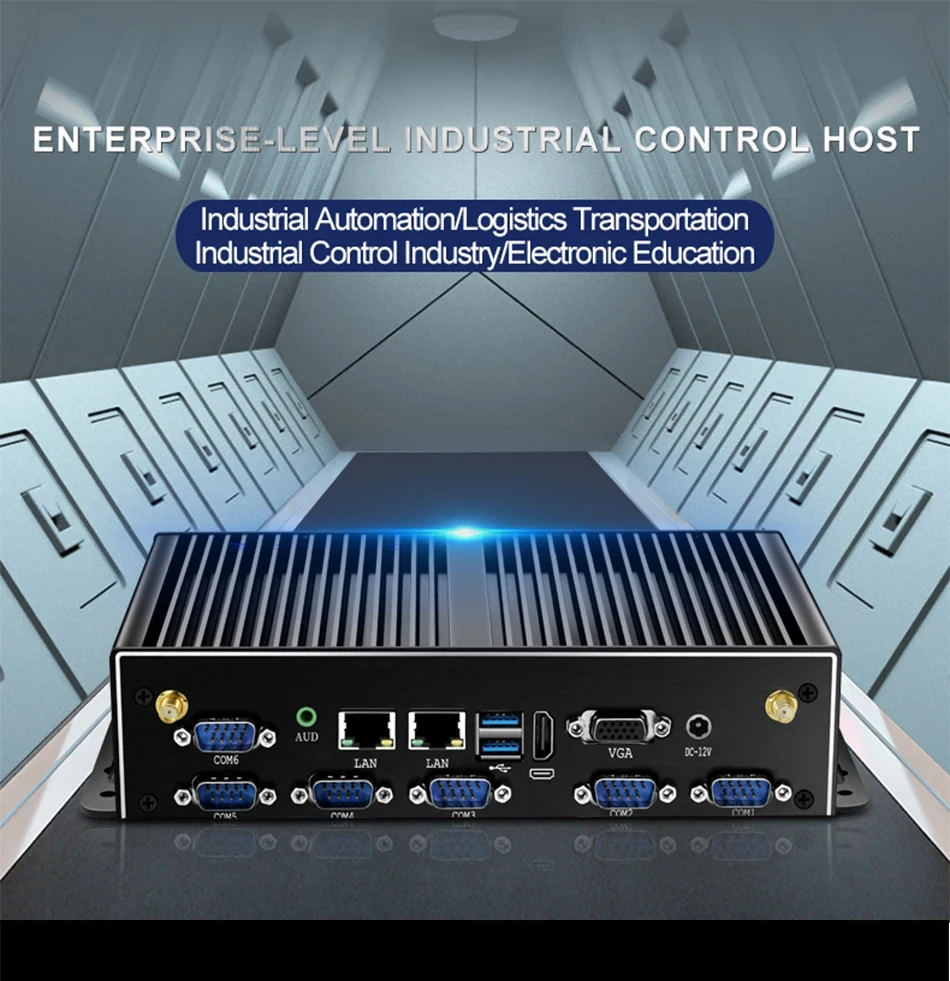

Connectors	2 x RJ45 LAN 4 x USB 3.0 2 x USB 2.0 6 x RS232 DB9 ( COM 1 to COM 6 default setting ) 1 x HDMI 1x VGA 1x 3.5mm Audio combo jack 2x WiFi antennas connectors
Construction	On-board fan cooling with aluminum alloy
Power Adapter	Input AC 100-240V, Output DC 12V-5A/3A

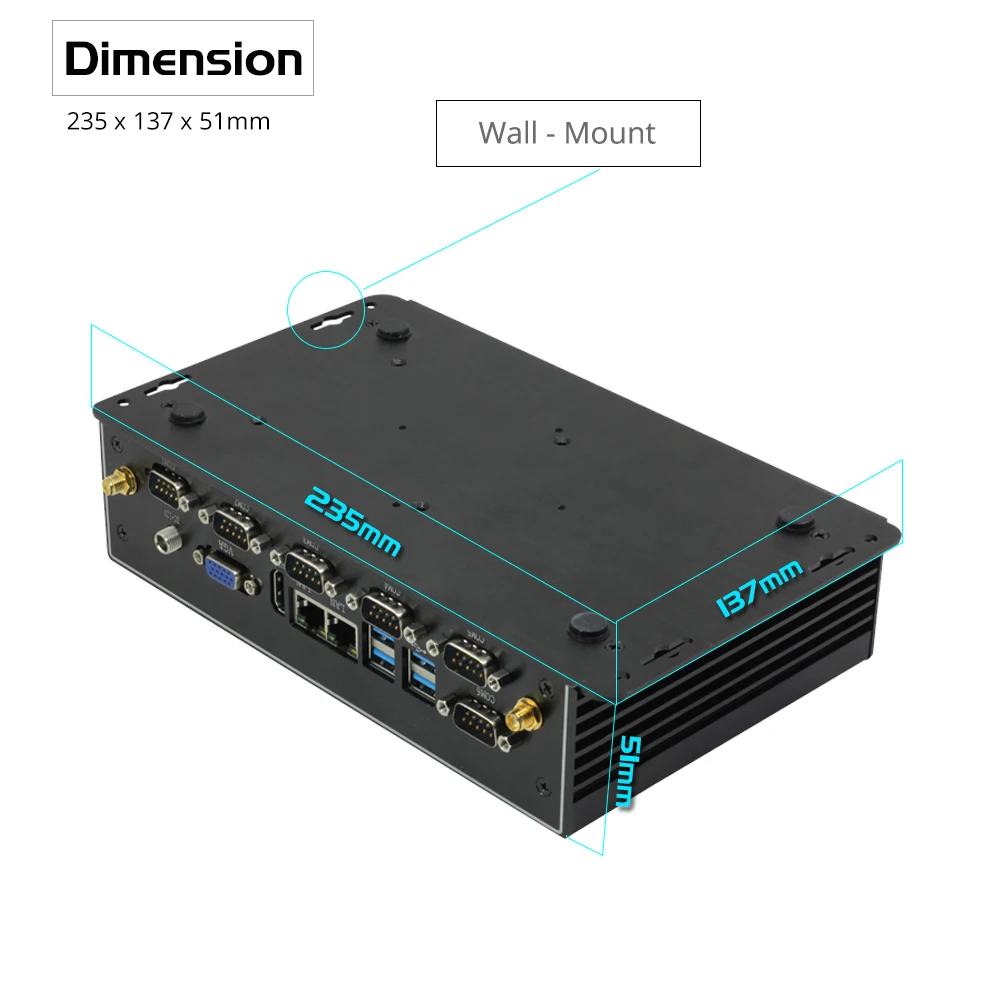

Dimension	235x137x51mm
N.Weight	1.5kg
Case Color	Black
Features	Support wake-up on LAN, PXE, automatically power on when power restored
Package List	1x Mini PC 1x AC adapter 1x Power Cord ( EU/AU/UK/US type plug shipped according to buyer’s address ) 1 x User manual

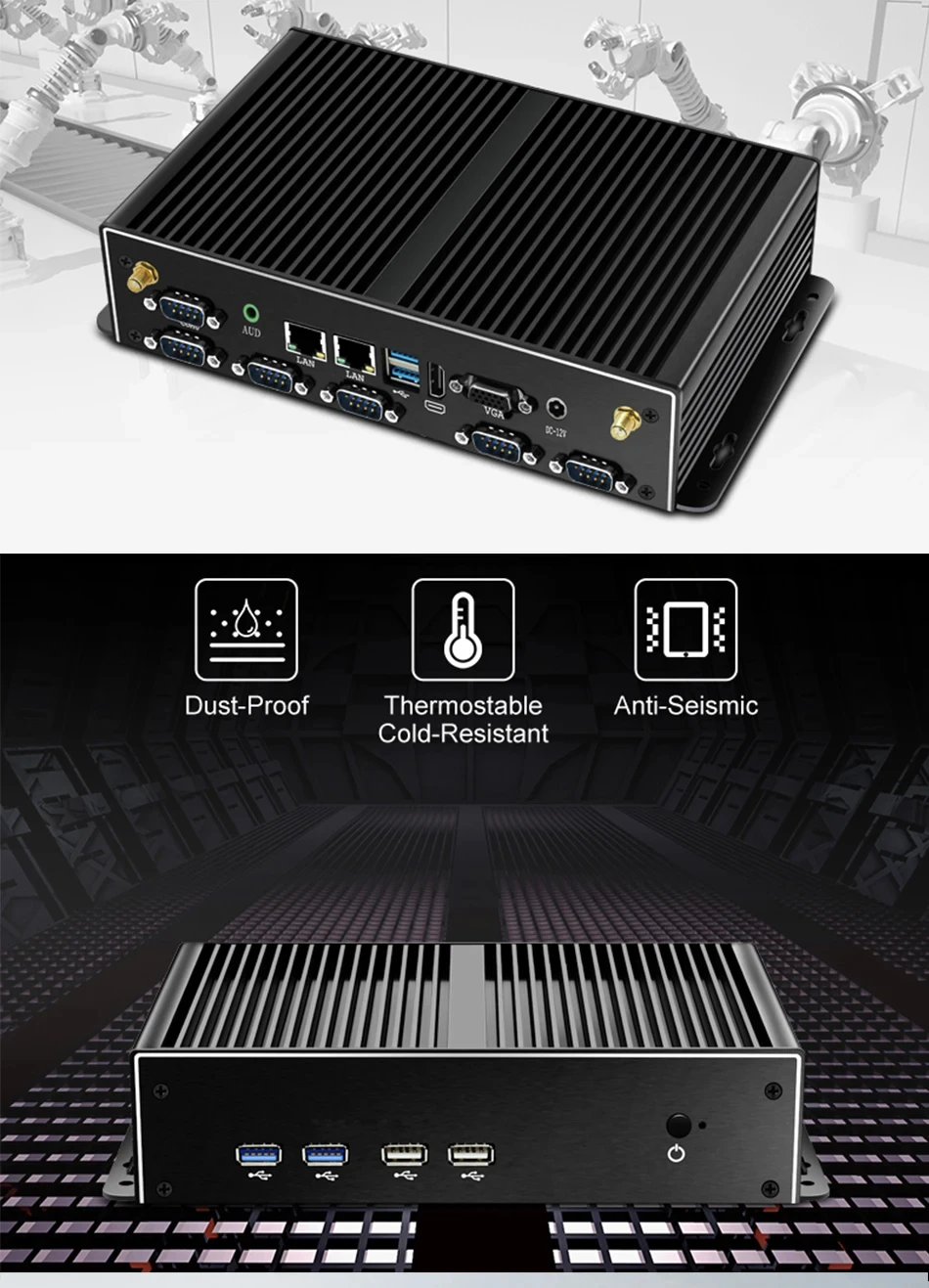

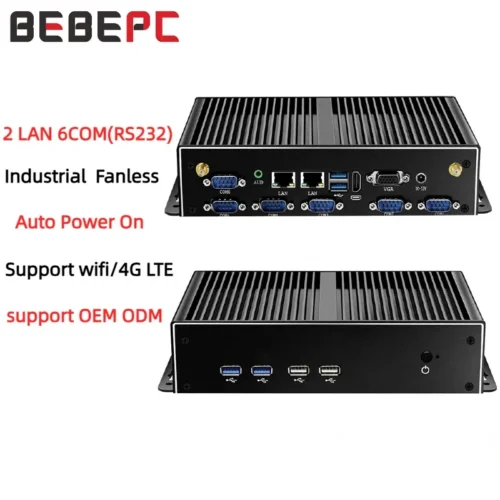

X26A Fanless Mini PC Embedded Industrial Computers

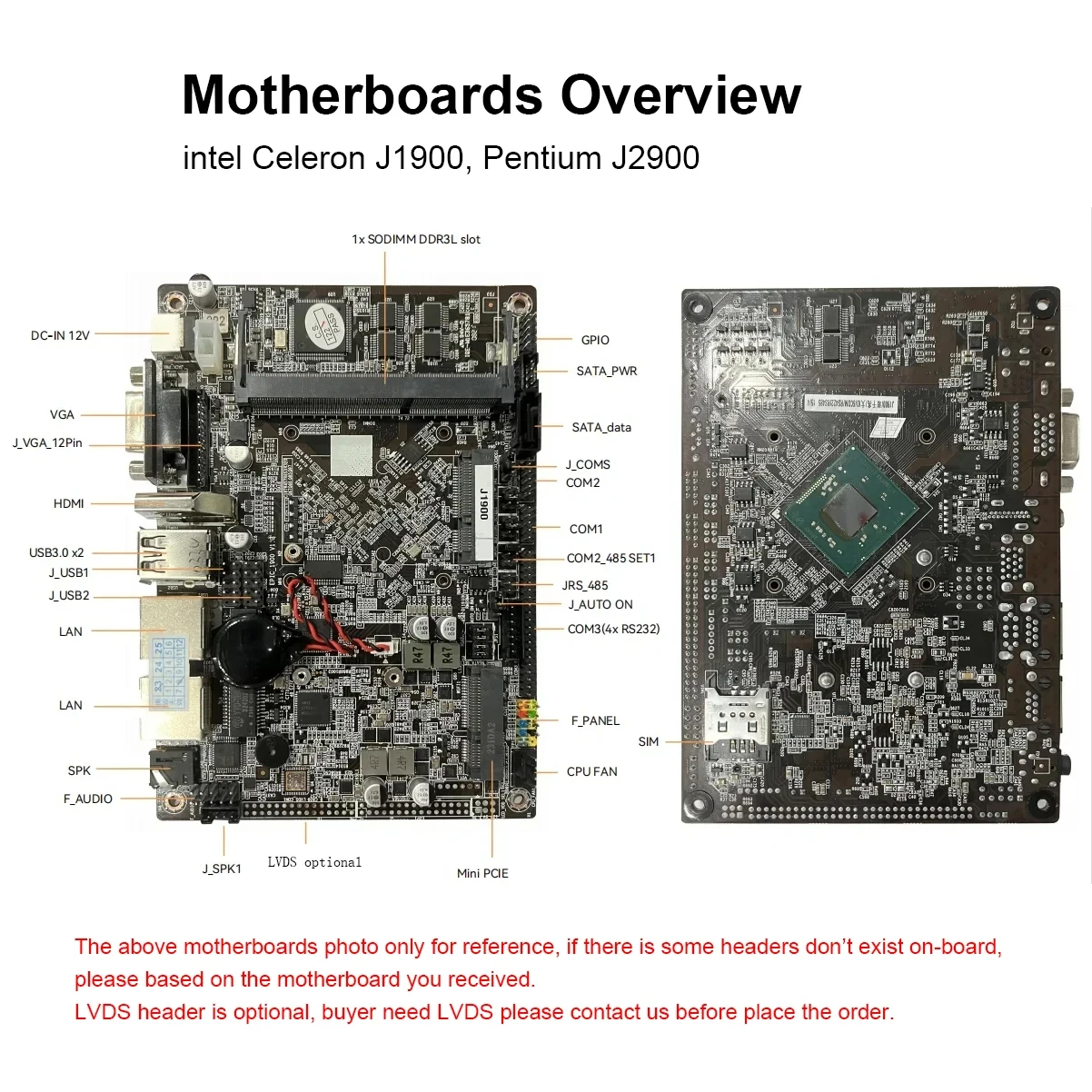

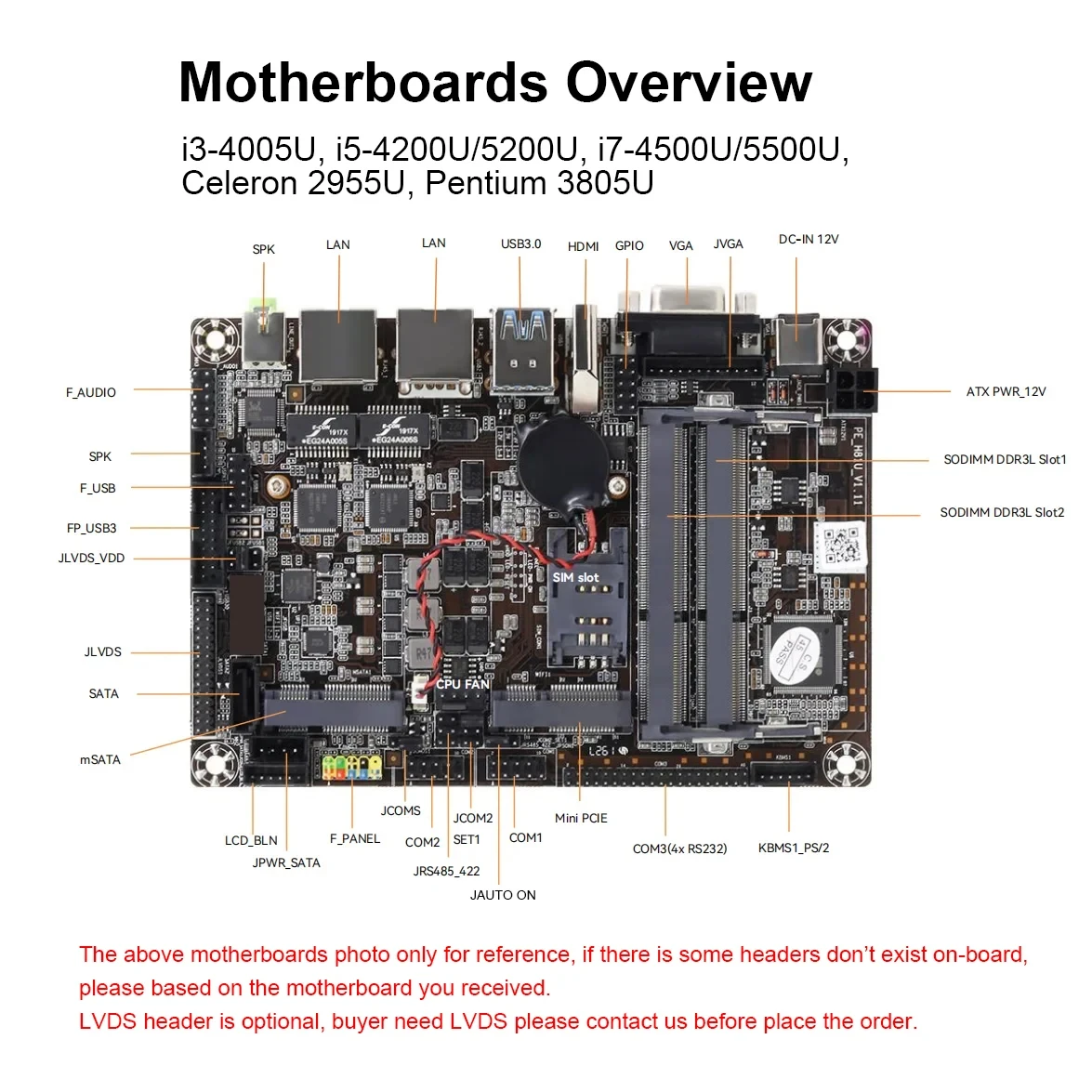

1)J1900/2955Umodel has 1x DDR3L memory slot,J6412/i5-7200U/i5-6300Umodel has 1x DDR4L memory slot

other CPUs has 2x DDR3L memory slots, support 1333/1600MHz

2) support one mSATA SSD and one 2.5 inch SATA HDD/SSD(J6412support one M.2 NVME)

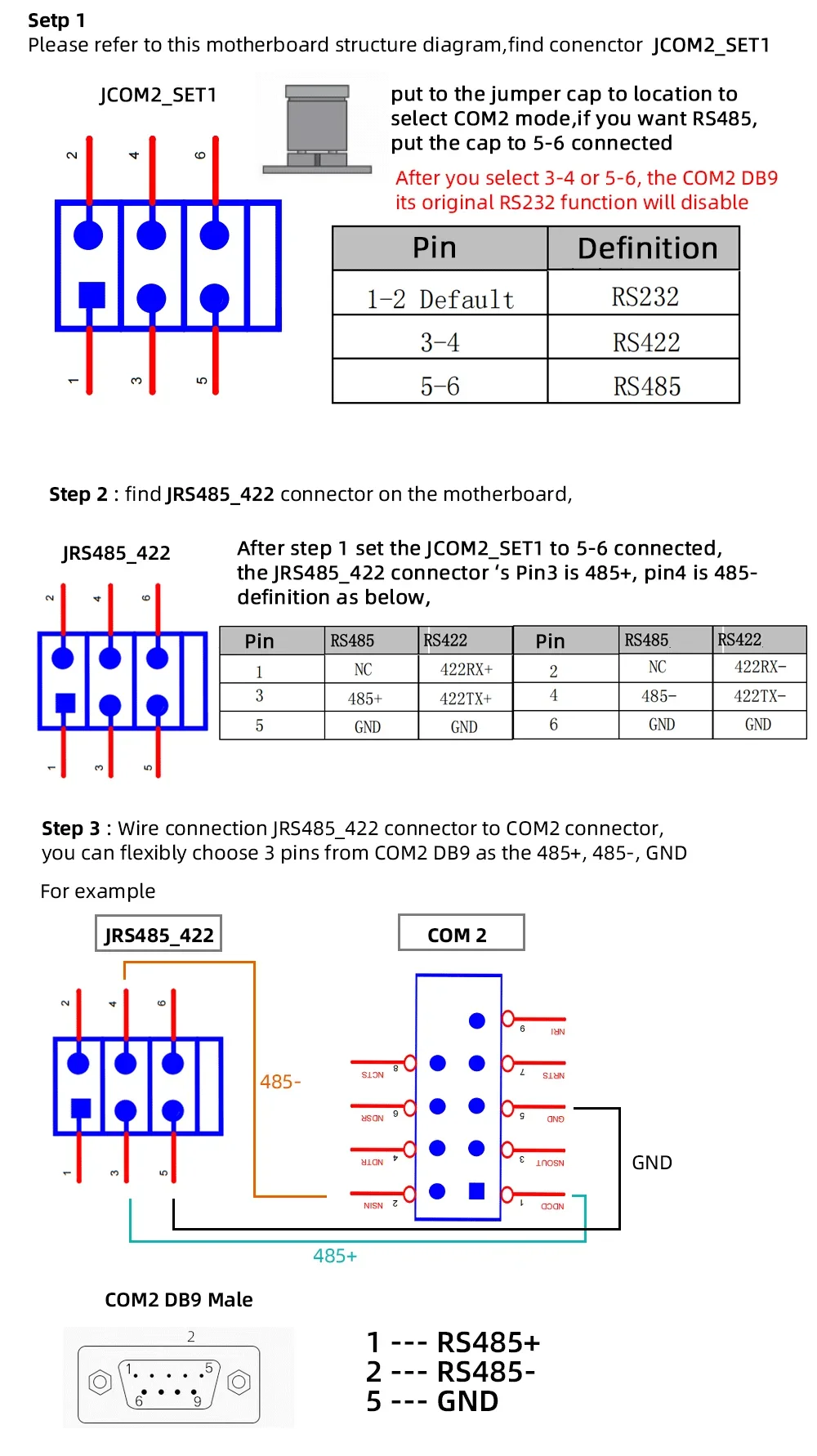

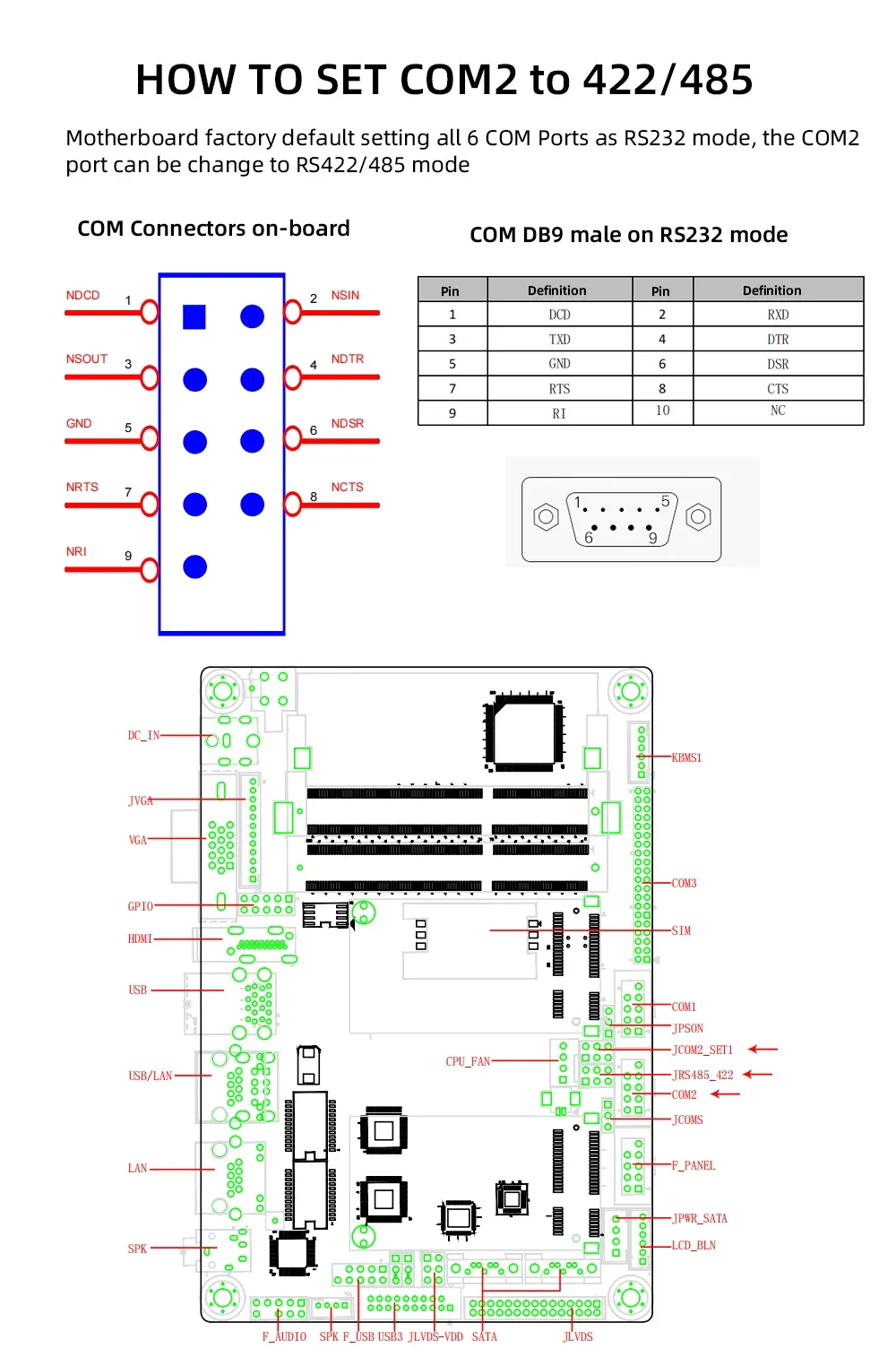

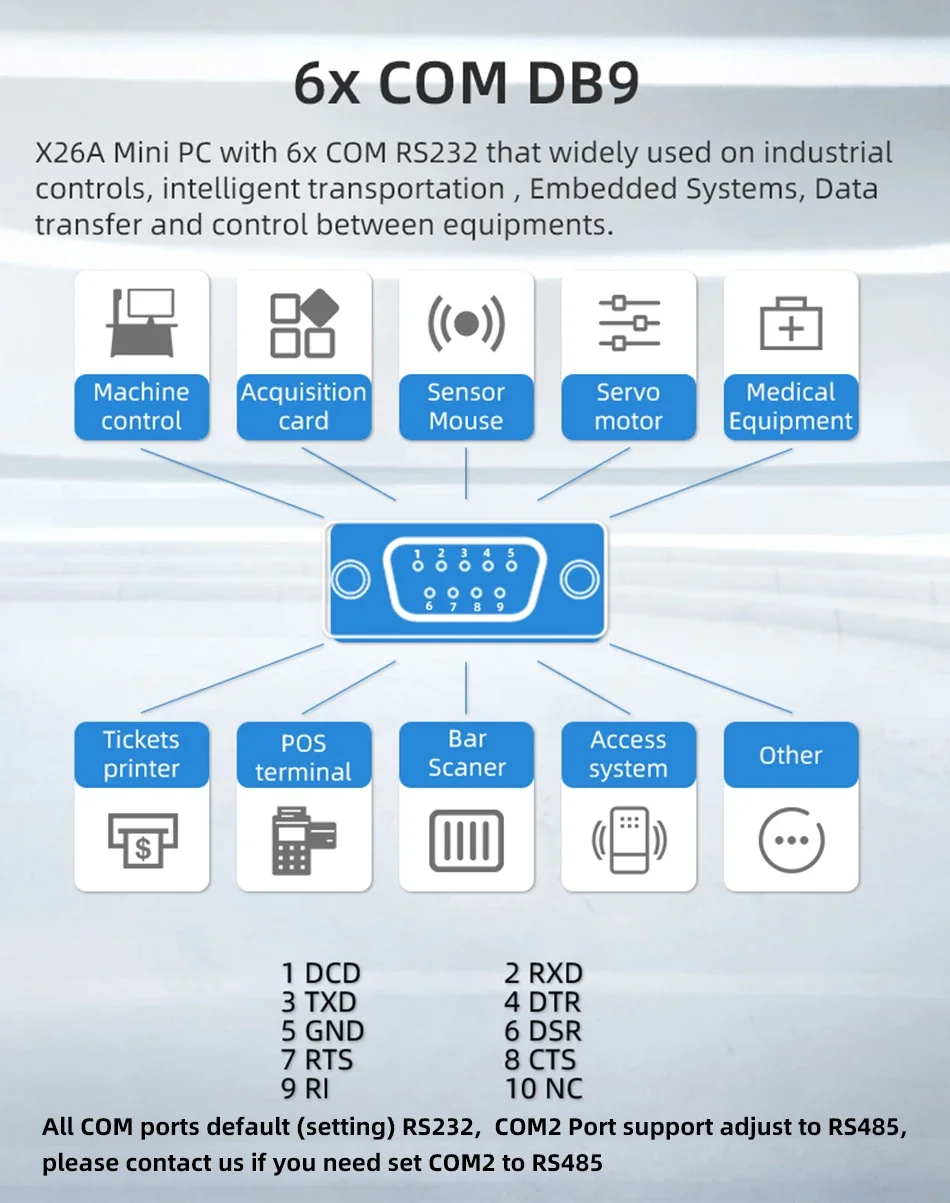

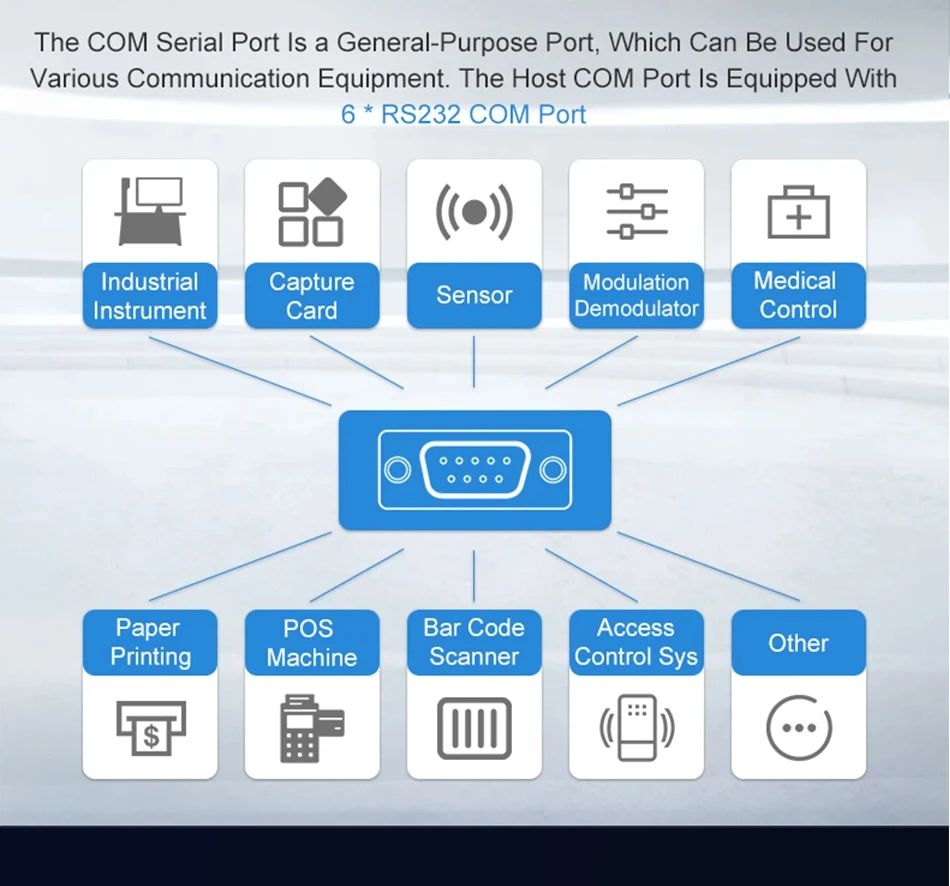

3) COM1 to COM6 DB9 default setting as RS232 mode, COM2 support adjust to RS422 or RS485 mode

4) 4x USB 3.0, 2x USB 2.0

5) Dual Ethernet,J1900is intel i211AT Ethenret, other CPUs is intel i225V Ethernet

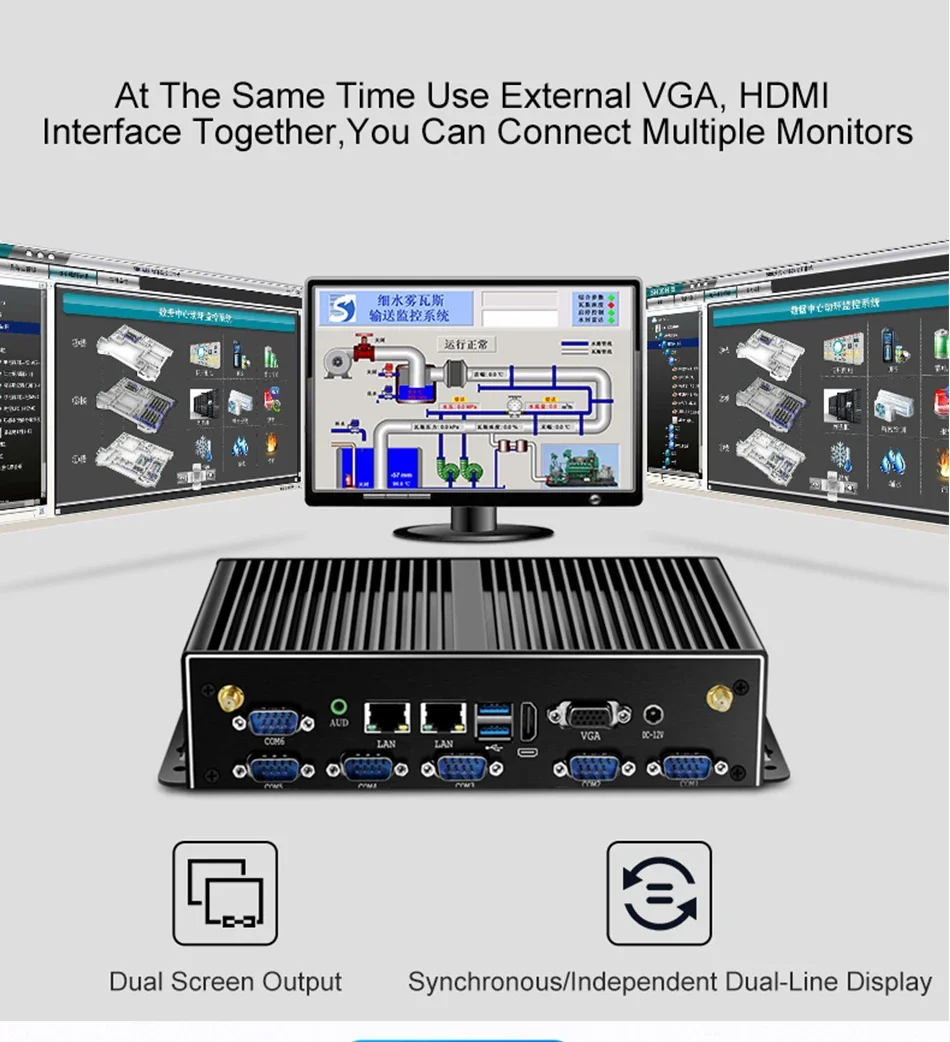

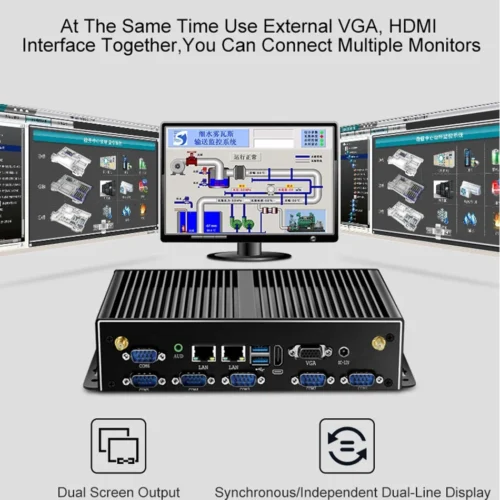

6) 1x HDMI, 1x VGA, support connect two monitors display

7) 1x Mini PCI-E socket for add WiFi/3G/4G LTE Modules

8) OS Support Windows 7, Windows 8, Windows 10, Linux, Ubuntu, CentOS;

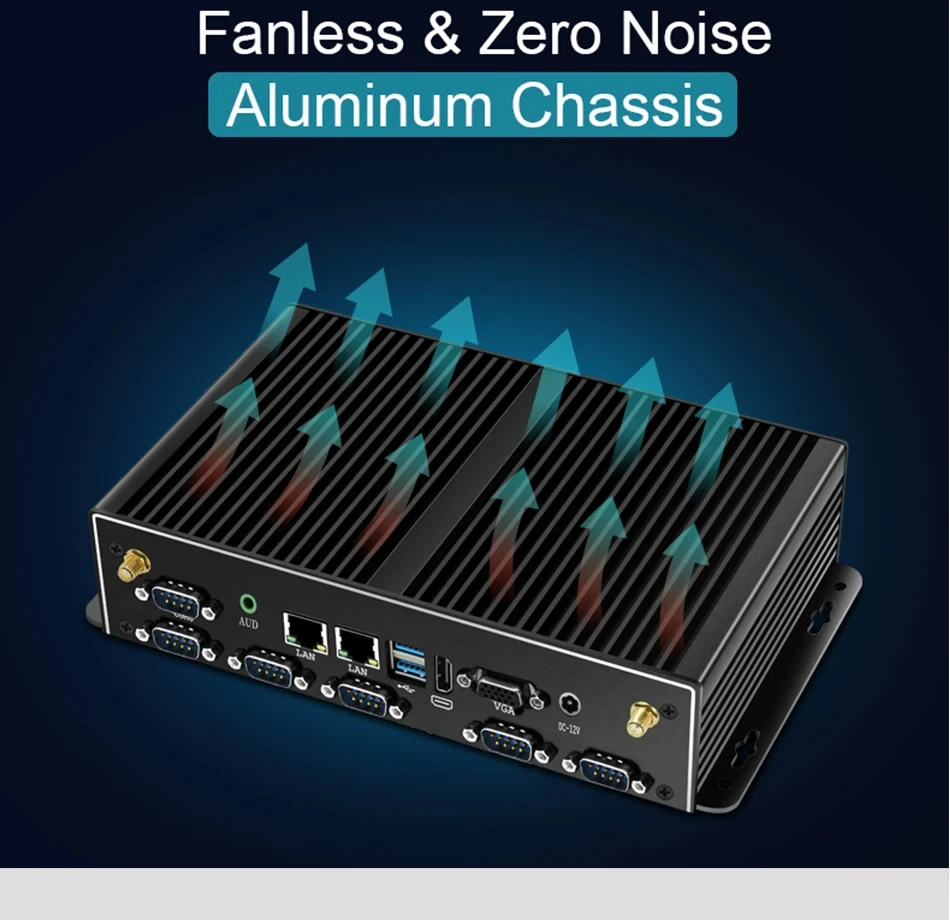

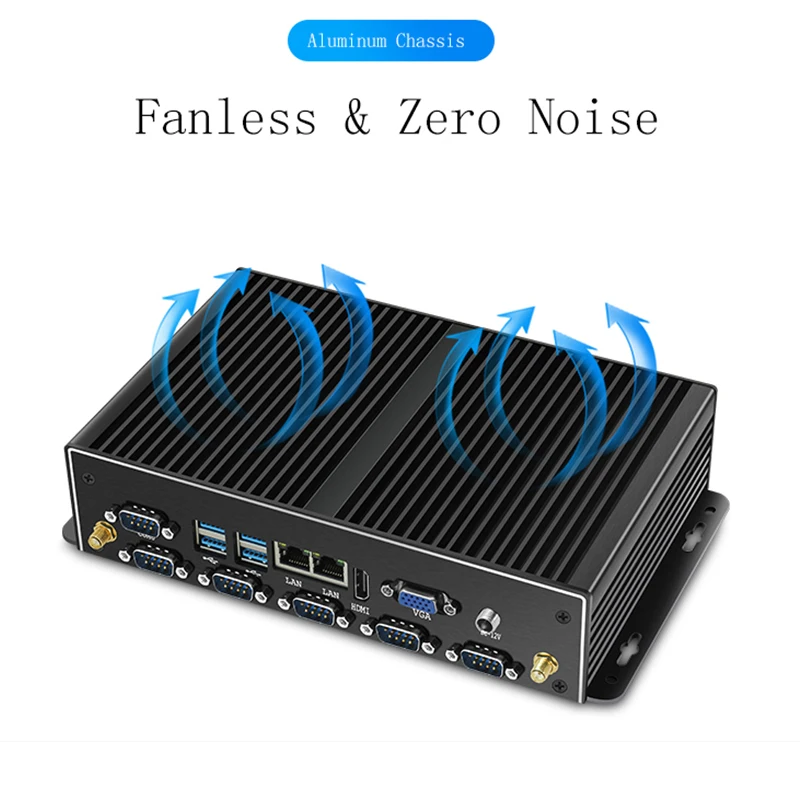

9) Fanless passive cooling, aluminum case;

10) Support wake up on LAN, PXE boot, Terming, automatically power on when power restored after power loss;

11) 1x LVDS optional, please confirm with us if you need LVDS connector on-board

Color	Celeron J2900 6USB, Celeron 2955U 6USB, Core i7 5500U 6USB, Core i3 4005U 6USB, Core i5 5200U 6USB, Core i5 4200U 6USB, Core i7 4500U 6USB, Celeron J1900 6USB
Bundle	8G RAM 128G SSD WiFi, 4G RAM 128G SSD WiFi, 8G RAM 256G SSD WiFi, NO RAM SSD WIFI
